Free Laundry to Landscape Plans

LaundryToLandscapeDiagram

Judging from our blog comments, the drought here on the west coast has people thinking about greywater. We’ve blogged about it many times before, but it’s worth repeating. Greywater expert Art Ludwig has excellent free plans on his website for putting together a laundry to landscape greywater system. I put this same system in at my neighbor Lora’s house a few years ago and just finished replacing our older greywater system with the one on Ludwig’s website.  It’s easy to install, inexpensive and legal to do without a permit in California.

Greywater Design and Installation Workshop

almaden reservoir car

Learn how to install the popular “laundry to landscape” (L2L) greywater system in this design workshop presented by Laura Allen of Greywater Action and Leigh Jerrard of Greywater Corps.

Laundry to landscape greywater systems are simple, affordable, and easy to maintain. With your own L2L system you can irrigate your landscape each time you do laundry, saving you water, time, and resources. Experienced instructors will lead you step-by-step through the design process, tailoring a system to fit your home. This system is legal to install without a permit, just follow 12 basic guidelines you’ll learn about in class.

Learn

  • How to design a system for your home and landscape
  • How to build a system- you’ll create a “mock-up” of a real system with real greywater parts
  • What parts you’ll need for your home
  • How much greywater you produce and how many plants you can water
  • What soaps and detergents are “greywater friendly”

Tour

  • Real L2L greywater system
  • Gravity “branched drain” greywater system from sinks

Date: February 22, 2014 – 10:00am to 12:30pm
Location: Los Angeles EcoVillage 117 Bimini Place LA, CA 90004
Cost: Sliding scale $15 to $40, limited work trade positions available

Register HERE

Bring: Photographs of your laundry room and landscape. Site plan of your yard.
For more information on an L2L system refer to the SF Graywater Guide for Outdoor Irrigation, downloadable HERE

Please join our mailing list to be notified of upcoming workshops.
A long-submerged abandoned car is exposed at the bottom of the now-dry Almaden Reservoir
(January 16, 2014. Photo: Michael Short, The Chronicle)

What laundry detergent should I use for greywater applications?

oasis

When your laundry water is going to the soil instead of to the sewer (or a septic tank) you need to make sure that detergent is friendly to soil life. Your big brand detergents are a no-go. And even the various eco-detergents, even ones marked “biodegradable”, are not appropriate for the soil because they are essentially salt-based. They play well with aquatic life, bless them, and they’re a great alternative to more toxic detergents if your laundry water is going to the sewer, but they aren’t good for soil microorganisms. Surely you’ve heard that salting the land is a bad idea? You don’t want to salt your garden. Those salts will build up in the soil and can cause salt burn on tree leaves. (This appears as leaves with browning tips, as if they’ve been sunburned.)

It’s worth adding that the drier your climate, the saltier the soil, because there is not enough rain to help percolate it away–so if you live in a dry climate it’s even more important to be careful with salts.

Homemade detergents–the ones based on soap and washing soda–are also not an option, again because of their salt content.

This leaves you with two options, at least as far as we know. If you know another detergent which is specifically formulated for greywater use, please let us know.

1)  The first is a laundry detergent called Oasis Biocompatible, sold by Bio Pac. This is what we use. It’s a basic, colorless, odorless, super concentrated liquid detergent, specifically formulated for greywater use.  It works very well, but doesn’t have the bells and whistles of “whiteners” and “brighteners” found in grocery store brands. To me, this is a plus.  It is not found on supermarket shelves. I have seen it in some health food stores, but we order it online. This is not too bad of a deal because it is concentrated, so a gallon bottle lasts a long time.

2)  The second option is soap nuts. Soap nuts are the dried fruit of the soap nut tree–they look a little like a cross between a date and a hazelnut. They are full of natural saponins (soaping agents) which are released in the wash. These saponins have been tested and don’t harm soil life.

You just drop 3 or 4 of the nuts into a little muslin bag (which comes in the box), and throw that bag in the wash with your clothes. They activate better in hot water, so some people will opt to soak the bag in a cup of hot water first–like making tea–and then dump the water and the bag into the wash.  Other people stew the nuts in water and make soap nut tea, which can then be used like liquid soap, for both hand washing and laundry. There’s lots of info online about soap nuts if you poke around a bit.

I just remembered that I posted here back in 2010, asking for feedback on the nuts, and got lots of it. So you might want to check that out.

If you’ve never heard of soap nuts, the whole idea might seem strange. But remember, all soap really does is help water work better, and they release soap. The real washing power is the agitating water in your machine.

Incidentally, both Oasis and soap nuts are fine for HE washing machines.

ADDENDUM: Option #3:  Thanks to commenters Kay and Matt, I’m going to add a 3rd product to this list: Ecos  Laundry Detergent. It claims to be greywater safe, I checked the ingredients and saw no salts, and Matt says he’s used it for a year successfully. Sounds good to me! Also in the plus category, this Ecos seems easier to find in stores than Oasis.

Also:

Pure castile soap, like liquid Dr. Bronners, is okay for the soil, but it doesn’t really work as a laundry detergent. You can use it as such for the occasional load, but you will find your clothes turning grey with extended use. Sometimes, however, if I’m dealing with a musty or stinky load of laundry, I’ll put a squirt of scented Dr. Bronners into my machine along with my Oasis or soap nuts, since Oasis is odorless, and soap nuts have a bit of an organic scent (which doesn’t linger on the clothes).

Laundry additives:

You also need to be careful with laundry additives when your laundry water is going to the garden. No bleach, obviously. Bleach alternatives, like OxyClean, are also suspect because they are often based on sodium percarbonate. Check the ingredients and scan for the word sodium. If you see it, it’s best to avoid the product. For this same reason, no baking soda (sodium bicarbonate) either, or washing soda (a sodium salt of carbonic acid).

Vinegar is okay, lemon juice is okay, and I don’t see how small amounts of hydrogen peroxide would hurt anything, though I’d want to do more research if I made it a regular part of my laundry rituals.  I’m suspicious of the various specialty stain removers. If you’re just squirting one spot on a shirt, obviously it will be greatly diluted in the wash water, but really, who knows what is in these stain formulas? When you use greywater you really learn the meaning of “closed loop” — you have to live with what you put out there. So, the decision is yours in the end.

So how do you use your “nuclear option” type laundry additives? Read on, dearies.

The Importance of a Three Way Valve:

It is well worth the time to install a diverter valve by your machine which allows you to choose whether your wash water will go to the sewer or the garden. If you have one of these, you can do loads with bleach or what-have-you and send that water to the sewage treatment plant.

Also, if you are washing diapers, this valve is an absolute necessity. All diaper wash water should go to the sewer. Soil is a great cleanser, but you don’t want to push your luck by depositing fecal matter around your garden.

(Addendum here, too: I spoke a little too absolutely above. It is possible to reuse that water, but you need to do so very carefully.  Diaper water is blackwater, not greywater, and needs to be handled in specific ways  Perhaps we’ll do a separate post on that later.)

Finally, during periods of heavy rain you may just prefer not to send any more water to the garden, and this allows you to make that choice.

A few words about other greywater applications:

If you’re using greywater from your shower, most soaps and shampoos are okay. Though again, I’d remember the closed loop principle and try to use soaps and shampoo from the more natural end of the spectrum.  Again, good ol’ Dr. Bronners, soap or liquid form, is something I’d feel good about sending out to the landscape.

Bio Pac also makes a concentrated soap which is a sister to the Oasis Detergent called Oasis Dishwash/All Purpose Cleaner. This is an all purpose soap that you can even use in the shower. This would be a good product to use for more casual water recycling–so when you’re cleaning house, say, you can safely dump a bucket of dirty water outside and know that it won’t harm your garden.

Greywater 101

greywatertri

Survival Podcast intern Josiah Wallingford has started up a blog, Brink of Freedom, that I’m going to contribute to periodically. In my first post, Laundry to Landscape: How to Reuse Laundry Greywater, I discuss my own greywater system as well as the setup I installed at neighbor Lora’s house. Greywater has been one of the simplest and most rewarding projects at our homestead. And I’m looking forward to continuing the conversation over at the Brink of Freedom.

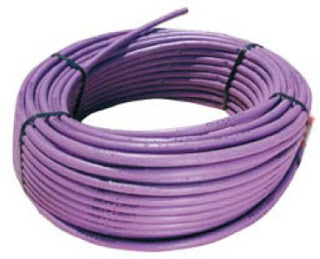

Netafim Tiran, a Greywater Dripline

In a lecture I heard recently, Leigh Jerrard of the Greywater Corp mentioned an intriguing product from Australia: a dripline compatible with greywater. Now, if you tried to push gunky greywater through conventional dripline it would clog in seconds. According to the manufacturer, Netafim Tiran Greywater Dripline gets around this problem because,

Each dripper has its own mini filter. When a contaminant attempts to enter the emmitter, it is rejected by the emitter and simply remains in the tube. The irrigation system should be flushed once a year, however anecdotal evidence indicates that flushing may only be required every 5 years.

100 meters of Netafim costs 100 Australian dollars excluding tax, or about .30 USD a foot. Not a bad price if it performs as advertised. Some quick Googling failed to turn up a US distributor. Root Simple reader Rachel wrote to point out Netafim’s distributor locatoer: http://www.netafimusa.com/wastewater/support/locator.

To use Netafim you need to add a filter as you do with every drip system. I could see this product working nicely with Art Ludwig’s Laundry to Landscape system.

If any of you have worked with Netafim, leave a comment.

Dry Farming

Jethro Tull–the agriculturalist not the rock flutist

According to a 2010 report by Ceres “Water Risk in the Municipal Bond Market,” Los Angeles ranks number one in water supply risk. But we’re not alone. Many other US cities including Atlanta, Phoenix and Dallas also face a future of water insecurity.

Due to these water risks we’d all do well to consider ways to grow edibles without supplemental irrigation. This may sound absurd at first, but I’ll note that in our garden we’ve discovered, quite by accident, that many plants such as prickly pear cactus, cherry tomatoes, cardoon and pomegranates will do just fine in a climate where it doesn’t rain for six months out of the year.  Scott Kleinrock at the Huntington Ranch proved that you can grow chard in Southern California with almost no irrigation through a hot summer (the chard thrived in the Ranch’s food forest under almost complete shade).

As an avid gardener in a dry climate I certainly use a lot of water for my vegetables. Most modern vegetables are adapted to copious watering. But this was not always the case. A classic book Dry Farming by John Andreas Widtsoe, first published in 1911 and available as a free download in Google Books, describes how many farmers got along without the modern conveniences of supplemental irrigation.

A dry farmed wheat and alfalfa field in Wyoming from Dry Farming

Other than the advice to till frequently (tilling, among other things, destroys beneficial fungal networks), Dry Farming has some good tips:

  • Maintain soil fertility
  • Plant deeply
  • Plant varieties adapted to dry farming
  • Know when to plant
  • Pay attention to soil structure

The main takeaway for us home gardeners will be the development of drought tolerant veggies. Native Seed Search is a good start, but seed saving will be the ultimate solution. We’re simply going to have to breed drought tolerance back into our water hungry vegetables. Combined with passive water collection techniques such as sunken rather than raised beds, those of us in arid climates can grow a surprising amount of food with a lot less water.

Clarification: dry farming is not growing during the rainy season (which is called “rainfed agriculture”). Dry farming uses strategies to store water in the soil during the rainy season and then grow during the dry part of the year. Though controversial, dry farming traditionally involves tilling.  It also requires much greater spacing of plants. For more information see the website of the California Agricultural Water Stewardship Initiative.

Pot o’ Goodness: Low, Low-Tech Water Conservation

Mrs. Homegrown here:

Continuing on the greywater theme, on big cooking days, when I’m doing a lot of boiling, steaming, soaking and rinsing, I collect all that used water in a big pot and take it out to the garden to water the plants. It’s full of nutrients, and won’t cause any blackwater* problems as long as you:

  • Use it immediately. It will turn foul if left to sit too long.
  • Pour it straight into the soil–don’t splash it all over edible leaves. Remember, soil purifies water.
  • Don’t use water full of food chunks or grease, as this will attract vermin and cause smells.

I know it’s only a little bit water that I’m saving by doing this, but to me it’s a symbolic act, almost a prayer. And heck, it hasn’t rained here since March, so every bit counts. Also, the plants really like the super-water. I think of it as a smoothie for them.

Another option is to re-use cooking waters as stock. This is something I don’t know much about. Sometimes I’ll take some nice bright green water leftover from steaming or blanching greens and use that to start a vegetable stock. But I’ve heard of people using pasta water as the base of soups. Have any of you tried that, or other techniques along those lines? Do tell.

And let us know if you have any quirky ways of saving water.

*What’s blackwater? It’s water which is dirtier than greywater, and therefore not usually recycled. Typically this is water coming from the toilet and the kitchen sink. Food particles from the sink turn septic quickly, and grease and heavy soap are not good for soil. However, our greywater guru, Art Ludwig, does say that kitchen sink water is nutrient rich, and suggests workarounds that allow sink water re-use, like grease traps or plumbing the sink so only the rinse water goes to the garden.

Greywater Fed Tomato Plant Takes Over The World

Homegrown Neighbor Here:

So a few months ago Mr. Homegrown helped me install a simple ‘laundry to landscape’ greywater system. Most of the plants that get watered by the system didn’t get much water before and were just barely surviving. There are several fruit trees, a rhubarb plant and an assortment of perennial herbs lining a narrow strip of land along the side of the house. Now, the plants getting fed by the greywater are going bonkers.

Last week the area became impassable it was so overgrown. The path along the side of the house had disappeared. I have the laundry water going to the sewer half the time because I don’t want to overwater. That and my roommate bought some non-greywater friendly soap. So I really only run one or two loads of laundry a week into the yard. But that has been more than enough.

Yesterday I hacked my way through the overgrowth and tried to train the rampant cherry tomato plant. The tomatoes are delicious. I eat them constantly when I’m in the yard and pawn them off on friends and family whenever I can. Still, there are tomatoes in areas that I can no longer get too. The tomato plant has killed my apple tree I think. I can’t see the apple tree under it anymore. The tomato plant is about eight feet tall and equally wide. It is reaching for the roof, using the poor buried apple tree as its support. I tried to photograph the madness, but it just looks like an indeterminable tangle and doesn’t really show what is going on.

But now I have reclaimed a path along the side of the house. If just an occasional load of laundry can provide such a boost to this little patch of land, I wonder what all of the other water used in the house could do. I would have to get rid of all of the low-water and native plantings and go tropical! It just goes to show how much water we use in our homes every day and don’t really think about where it goes. Eventually I would love for all of the water from our showers and sinks to go to the yard as well, but for now, the washing machine is creating a little tropical oasis and that’s plenty.

Laundry to Landscape 2.0

I just installed a “laundry to landscape” greywater system at the house of Lora “Homegrown Neighbor” Hall using greywater guru Art Ludwig’s free open-source plans. It was a cinch. And, thanks to a revision in the California plumbing code last year, it’s legal with no permit required.

I started in the laundry room by rigging up a three way diverter valve so that Lora can route the greywater back to the sewer if it’s been raining too much or if she’s bleaching her Prada (not likey, by the way). The diverter, somewhat of an exotic plumbing part, was ordered off of Ludwig’s website. At $47 it was the most expensive part of the system, but it’s well built.

Next, I rigged up two check valves, essentially a one-way gate, one to prevent greywater from siphoning back into the washing machine and another to act as a vent. You could also just use a six foot section of pipe as a vent, but Lora’s overhanging roof made that impossible.

The most labor intensive part of the process was digging the trench for the pipe out in the garden. Lora decided how many outlets she wanted in the garden and we consulted the “calculator” on Ludwig’s site (more of a chart than a calculator, actually, since he’s done the math for you). The calculator basically gives a range of outlet sizes and numbers so that you can get an even flow to the outlets but not risk burning out the washing machine’s pump. With nine outlets Ludwig suggests a 3/8-inch hole. We simply drilled 3/8-inch holes in the bottom of the PVC pipe that we ran out into the garden. The outlets flow into mini-mulch basins along the side of some perennial shrubs and a few small fruit trees.

Altogether it took just a few hours. Lora ran a load of clothes immediately and it worked perfectly. It was one of the easiest home improvement projects I’ve done. No cursing whatsoever! Now Lora can’t wait to do the laundry. She, of course, uses only Oasis Biocompatible Laundry Detergent. Note that many “eco” detergents will kill terrestrial plants–I’ll do a blog post on this shortly, as I discovered one major manufacturer claiming that a detergent was safe for greywater only to discover that it contained several different sodium compounds, definitely bad for soil!

Ludwig gives both a version of this project in PVC and another in HDPE plastic. I chose to work with the politically incorrect PVC since I couldn’t find the groovier 1-inch HDPE in less than 300 foot rolls. If any of you know of a source where you can get 1-inch HDPE by the foot, please let me know in the comments.

If you’d like to do this yourself the plans are all on Ludwigs site under Laundry to Landscape. In addition to the plans there is a parts list for both the PVC and HDPE versions and the aforementioned calculator.  If you don’t think you can do it yourself (remember it’s easy!) you could conceivably hand the plans to a handyman. A plumber would be too expensive, in my opinion.

See also Ludwig’s book The New Create an Oasis with Greywater.

Laundry to Landscape Legal in LA

Ludwig’s “Laundry to Landscape”
California’s new greywater code, passed in August of last year, was a big step in the right direction. The revised code legalized simple “laundry to landscape” systems of the sort promoted by greywater guru Art Ludwig and allowed their installation without a permit. Here’s a pdf from the City of Los Angeles Department of Building and Safety confirming that you don’t need a permit within LA city limits for “a graywater system in a one or two-family dwelling that is supplied only by a clothes-washer and/or a single-fixture system.” Though, confusingly, it also goes on to say, “Any alteration to the building or plumbing, electrical or mechanical system
requires a permit.” I guess we shouldn’t expect clarity from a department that can’t seem to get around to regulating thousands of illegal billboards. But I digress. I’m calling my laundry to landscape greywater installation legal!
Hopefully all California cites will respect the state code. Ludwig says,
“Trying to sell permits to California graywater users is like trying to sell a $100 search engine that you have to register for to people who use google. Any standard that can’t compete with “free” and “zero time for compliance” is doomed to irrelevance.

The only way government agencies can compete is to offer “free”, “zero time for compliance” legal systems that are better, and can be installed by professionals instead of having to do it yourself.

This involves surrendering the illusion of control, in trade for actually making things better on the ground.”

By foregoing permits, city government can play a role in encouraging greywater. Legalizing the practice makes it possible for professional plumbers to do the installations in addition to plucky DIYers. Kinda like prostitution in Holland–keep it out in the open and you’l have less . . . shoddy plumbing.
See Art Ludwig’s excellent website to see how to install your own laundry to landscape system. His book, Create an Oasis with Greywater is also highly recommended. And, if you’ve got a laundry to landscape system, make sure to use Oasis Biocompatible Detergent.
